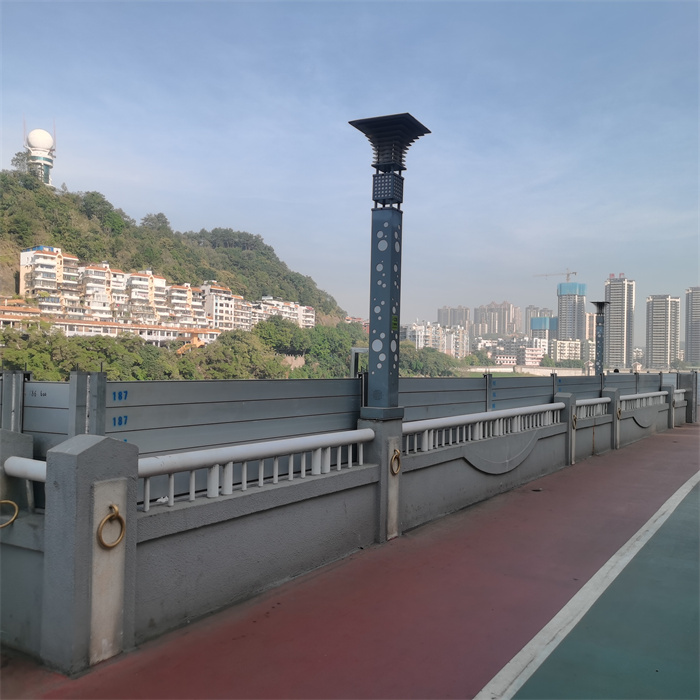

Water embankments, flood walls, wave walls

　　Flood control wall is a new type of flood control wall structure system, which is used to replace the traditional temporary sandbag embankment, concrete gravity retaining wall and cast-in-place reinforced concrete retaining wall.

　　Component material: The water retaining plate is made of aluminum alloy 6063, the flood wall column and side column are aluminum alloy 6005, the sealing strip is automotive grade EPDM, and the embedded parts are SUS304. The strength of all components has passed the third party test.

　　Baffle specifications are 35mm, 50mm, 70mm, 100mm four, according to the different height of the water to choose the corresponding specifications of the product.

　　The overall structure is installed by manual assembly, the baffle is stuck into the slot of the column, the column and the embedded part are connected by bolts, and all the gaps are squeezed and filled with EPDM rubber strips to achieve the sealing effect. Through special custom columns, embedded parts, etc, to achieve different angles and different height drop field environment, to achieve the effect of flood control seal.

　　There are many different specifications of baffles on the market, and the price changes greatly. The following describes some methods to help you choose the right product manufacturers.

　　The first is to choose a regular manufacturer, with drawing program design capabilities, about product specifications, structural style is clear.

　　If the two sides only rely on mouth communication, the characteristics of the product parameters are not clear, it is easy to quarrel later, affecting the final use effect.

　　The second is that regular manufacturers will calculate according to different water retaining height and span, use environmental hydrological data on site, issue the calculation and analysis of the force strength of the product, clarify the theoretical force strength, and facilitate the selection of different product specifications. Imagine if the manufacturer is not clear about the actual strength of use, and recommended by experience, either the strength is not enough or the cost of recommendation is too high.

　　Third, at present, some manufacturers on the market use imitation, copying and other small workshop production and processing, using the short-term reality of the lack of product standards, to make a few so-called material testing reports to fool, as long as the material model is right, the strength is reached? The overall strength of the product component is not clear and do not pay attention to, but there is no relevant factory testing equipment and methods, and the product has no quality.

　　Fourth, this product not only strength to meet the requirements, but also according to different structures, different heights to meet the corresponding leakage, unfortunately, at present there is no relevant reasonable leakage requirements standards, foreign standards are more theoretical significance than reality, because different scene environment, different water level height size, different product specifications, Even the same product and the same personnel install the amount of leakage will be different. The manufacturer itself needs to select several specification heights, and carry out multiple installations to obtain the maximum value of leakage under the actual supervision of a third-party testing unit on site.

　　Most of the products for emergency use, once put into use must ensure that the product can be installed at the critical moment, resistant to live, less water leakage, otherwise the consequences will be very serious.

　　The following points hope to help you: the manufacturer has the design ability (drawings), the force strength analysis ability (calculation book), the component strength detection equipment (hardware), the leakage test report, etc.

　　Yongjing Flood control - Safe, beautiful and intelligent!
