Fabricated aluminum alloy flood wall

Prefabricated flood control wall is a new type of flood control wall structure system, which is used to replace the traditional temporary sandbag embankment, concrete gravity retaining wall and cast-in-place reinforced concrete retaining wall.

Fabricated aluminum alloy flood wall

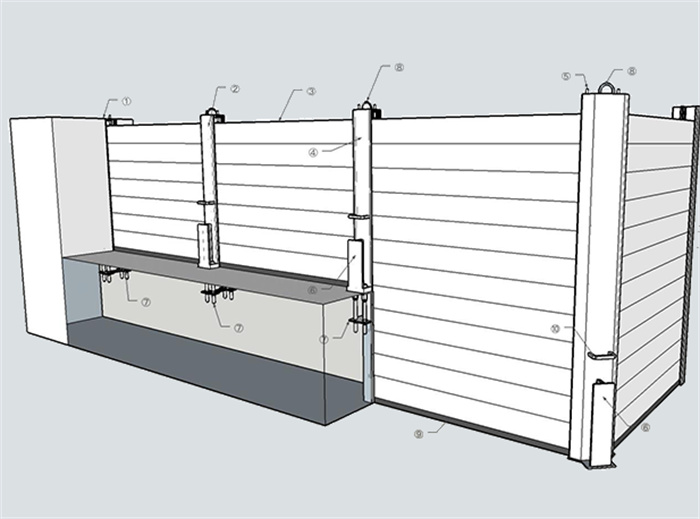

Serial number Name Material

1 side column aluminum alloy 6005-T5

2 Center column Aluminum alloy 6005-T5

3 Flood baffle aluminum alloy 6063-T6

4 High to low column aluminum alloy 6005-T5

5 Lower pressure lock 304 stainless steel

6 Reinforced aluminum alloy 6005-T5

7 Embedded parts 304 stainless steel

8 Ring aluminum alloy 6005-T5

9 Waterproof sponge composite material

10 Auxiliary handle Aluminum alloy 6005-T5

Prefabricated flood control wall is a new type of flood control wall structure system, which is used to replace the traditional temporary sandbag embankment, concrete gravity retaining wall and cast-in-place reinforced concrete retaining wall. It is composed of aluminum alloy center column, aluminum alloy side column, aluminum alloy baffle, stainless steel embedded parts, lower pressure lock, sealing parts, etc. Through mechanical safety calculation and authoritative testing, the flood control wall system of corresponding specifications is selected according to the design retaining height. Light flood control wall system is selected below 1.4 meters, medium flood control wall system is selected between 1.4 and 2.8 meters, and heavy flood control wall system is selected above 3 meters. The Angle between two adjacent units of the general type flood control wall is less than 165°, and the ground slope is less than 5°. The customized flood control wall can meet the actual needs of any Angle and slope.

Advantages:

Factory production, mechanized construction, reduce on-site labor intensity.

To reduce the land cost of flood control walls, only need to meet the installation space of embedded parts.

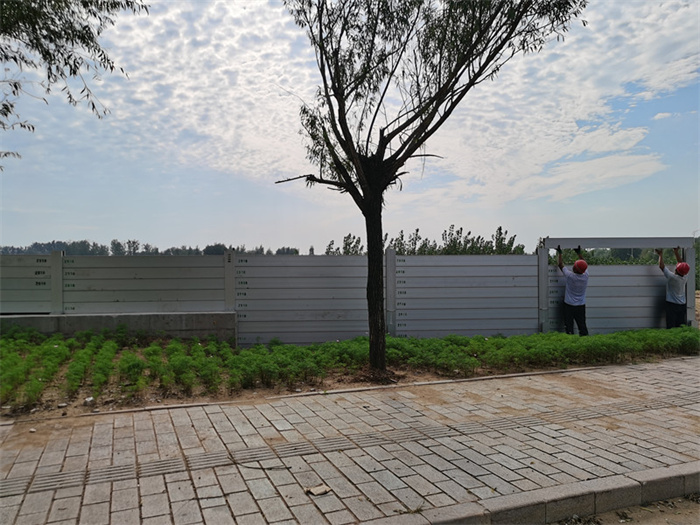

Flexible assembly, flood season assembly can prevent flood, daily demolition does not affect the surrounding environment landscape.

Aluminum alloy material strength is high, light weight, only a few people can be assembled, saving manpower and material resources in flood season.

Typical applications:

Cross-river traffic crossings, industrial and civil construction facilities in riverfront areas, low-lying building entrances and exits in cities and towns, flood prevention in scenic spots and historic sites, and flood prevention in important places
