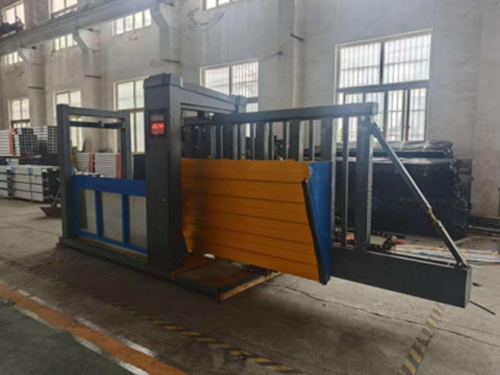

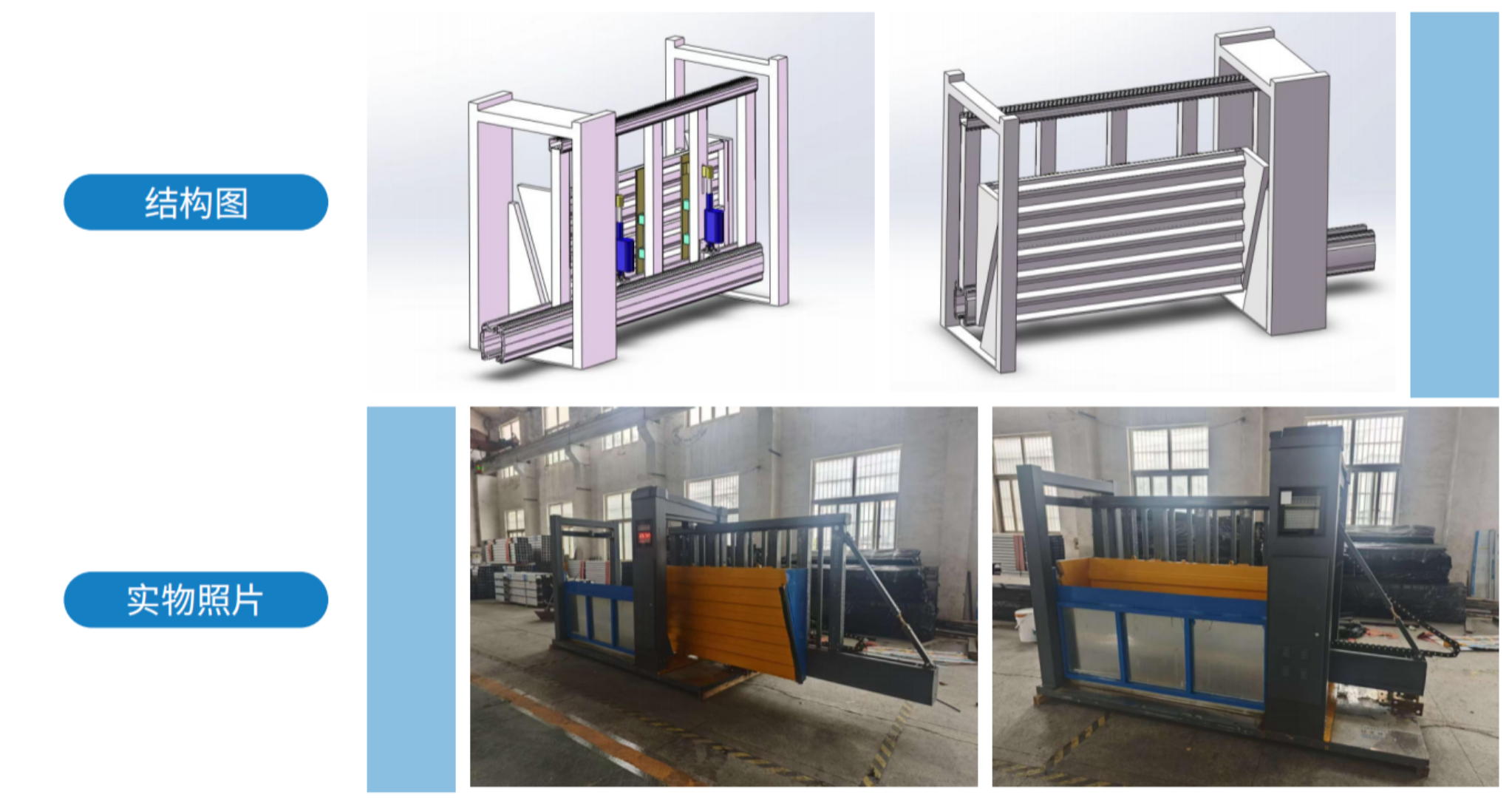

SUSPENDED FLOOD CONTROLIN SEALED DOOR

1. The strength of the main components of the floating door and water retaining plate meets thedesign requirements of 2m water retaining, and the surface is treated with anti-corrosiontreatment, with corrosion resistance of not less than 10 years.2. The automobile and EPDM materials are used for sealing to realize the water retaining function,and the fireproof hardware fittings, the gap at the bottom of the door < 3cm.3. The silent friction sliding device is adopted, with low noise and friction resistance, and theopening and closing time is less than 20m/min.4. Manual and automatic opening and closing mode is adopted. In case of power failure, the gateand the water baffle can be opened and closed manually. Control system:1. Running speed: 21-24m/min when the door is opened; Close the door for 15-16m/min, and the

reduction ratio is 1:30;2. Electronic control position accuracy: < 5mm, opening and closing accuracy: < 5mm;3. Normal crack gap:< 1cm, water seepage: < 1m/h, sealing pressure:> 2000kg;4. Remote control distance: < 40m, drive system: intelligent frequency conversion, 1200W,

working voltage: DC24V;5. Input voltage: AC220V, protection grade, IP55; Insulation grade, grade e;6. Water retaining response time <3 seconds, remote control response time <2 seconds, anddoorman response time ≤3 seconds;

7. It can be operated in two modes: electric control and manual operation.
